Advantages:
- Highest clogging resistance
- From 6 mil to 15 mil
- Flows: 0,6 l/h, 0,68 l/h, 1 l/h, 1,3 l/h, 1,6 l/h
- Mini size dripper = Economical solution
- Uniformity 2% CV
Applications:
- Vegetables
- Flowers
- Sugarcane & biofuel crops
Characteristics:
- Asymmetrical, non-compensating flat dripper.
- Cost-effective due to optimized design.
- Superior flow rate characteristics.
- Ease of operational handling.
- Excellent cost-performance ratio.
- High clogging resistance, higher than other bigger drippers.
Specification:
- Tube wall thickness: 5 – 25mil (0.15-0.63 mm).
- Tube diameter Ø12 to Ø27mm.
- Flow rates: 0,6 l/h, 0.68 l/h, 1 l/h, 1,3 l/h, 1,6 l/h.
- Cv <2%.
- Pressure range: 0.4-2.5 Bar.
- Recommended filtration: 130/120 micron/mesh.
The best clogging resistance

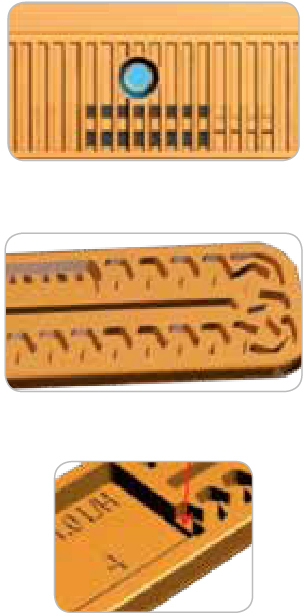

Clogging performance achieved by:
- Protective filter
- Large filtration area.
- Narrow entrance.
- Modern labyrinth design
- High water turbulance.
- Wide water passages.
- Very low flow exponent of 0.46.
- Sand protective barrier
