Viking Micro
- Micro Sprinkler Components are manufactured from the highest quality engineering grade polymers
- Patented bayonet type fittings for positive locking of individual components, securing them in place
- Colour coded combinations for easy selection and simple compact modular parts for easy replacing
- Eco-friendly heavy metal free PVC flexible tubing with excellent UV and Ozone resistant properties
- Designed and manufactured in South Africa ISO 9001:2008 approved facility ensuring you have a full one year manufacturers guarantee

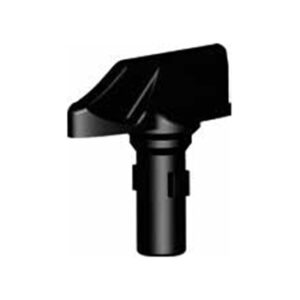

BEARING
Equipped with a bayonet mechanism to allow an effortless replacement of swivels and spreaders, contains a molybdenum additive for increased wear resistance and extended life span.

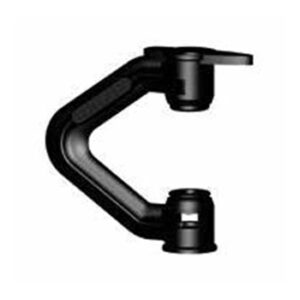

BRIDGE
Strong and robust design, specially designed to give less water shade for even distribution, can be used either with spreader or with bearing, nozzle and swivel.

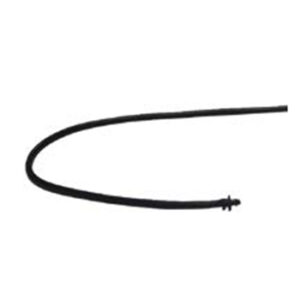

TUBING
Flexible, UV-resistant material, variety of lengths available on request, available in green and black, butterfly with barb for a firm connection.
SPREADER
Radical strip spreader design, especially robust with exceptional distribution pattern.
SPIKE
Purpose-designed spike equipped with a clasp and positive lock to keep the tubing in place and prevent human or implement accidents serves as a tool as the tip can be used to drill holes into the piping, and the area on top can be used to drive spike into the ground with a rubber hammer, depth mark for easy and fast installation.

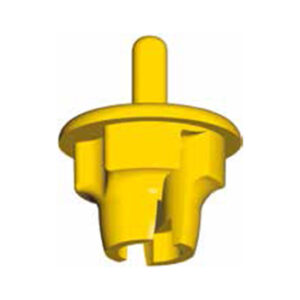

SWIVEL

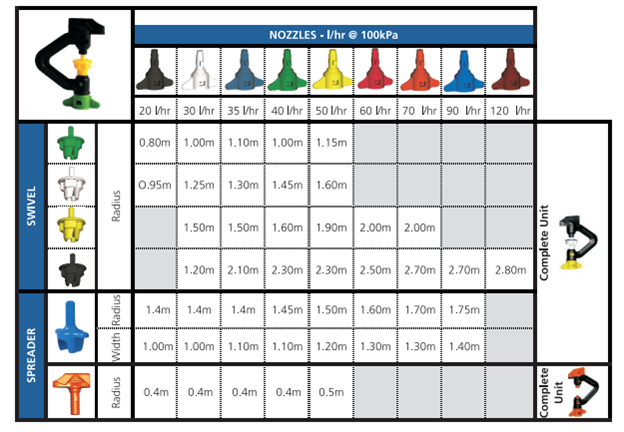

A broad range of distribution patterns and wetted diameters, four swivels (small, medium, large and extra-large wetted diameters) to suit any crop spacing, thicker stem for minimizing the effects of wear, Teflon layer for wear resistance and extended life span, superior distribution uniformity, precise water application with very little misting, precipitation graphs for any sprinkler combination available on request, popular combinations provided.

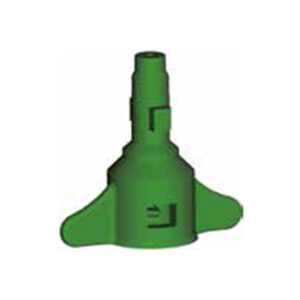

NOZZLE
A diverse range of nozzles with nine different flow rates between 20 and 120l/h, designed with bayonet couplings for easy fit and to prevent leakage, resistant to the effect of frosts and pressure surges due to the patented bayonet coupling between nozzle and butterfly, thorough nozzle data available (A&B factors) for professional irrigation design purposes.
